FOR ORIGINAL TUNING!
DRIVE SPROCKET (FRONT)
Main model
NSR50、MONKEY
Download the image
Download all images
Type
Code NO
Tax in price
Price
JAN Code NO
12T (420)
530-1010212
¥1,430
¥1,300
4990852063246
13T (420)
530-1010213
¥1,430
¥1,300
4990852063253
14T (420)
530-1010214
¥1,430
¥1,300
4990852063260
15T (420)
530-1010215
¥1,430
¥1,300
4990852063277
16T (420)
530-1010216
¥1,485
¥1,350
4990852063284
17T (420)
530-1010217
¥1,540
¥1,400
4990852063291
Product description
FRONT SPROCKET WITH VARIETY OF TEETH LINE-UP AND REASONALBLE PRICE FOR BEST TUNING. LIGHTWEIGHT / HIGH DURABILITY S45C(HIGH CARBON STEEL) IS ADAPTED. LIGHTWEIGHT SPROCKET UNDER SPRING IS GOOD FOR FRICTION LOSS.
●INSPECT EVERY 1000 km AND EXCHANGE WHEN FOUND TAPERED. DAILY MAINTENANCE LIKE OIL LUBRICATING IS RECOMMENDED.
>>SPECIAL FEATURE

>>View more

Applicable model

●IT IS ATTACHMENT CONFIRMED TO THE FOLLOWING VEHICLES.

NSR50(AC10) / NSR80(HC08) / NS-1(AC12) / MONKEY/GORILLA(Z50J/AB27) / SUPER CUB50(C50-8000026~/AA01)/ LITTLE CUB(C50/AA01) / SUPER CUB70 (C70-8500001~)SUPER CUB90(HA02) / APE50/-TYPE D(AC16/AC18) / APE100/-TYPE D(HC07/HC13) / SUPER CUB50系(AA09/AA06/AA07) / SUPER CUB110(JA07) / SUPER CUB110(JA10) / GROM(JC61/JC75/JC92) / MONKEY125(JB02/JB03/JB05) / DAX125(JB04/JB06) / SUPER CUB C125(JA48/JA58/JA71) / NSF100etc.

●FOLLOWING MODELS WITH 420 SIZE

SUPER CUB 110(JA44) / CROSS CUB 110(JA45)etc.

●A CONFORMITY TABLE IS REFERRED TO.

>>FITTING LIST

>>View more

Notes
○420
※17T INTERFERES WITH CRANKCASE FOR MONKEY / CUB(50cc~90cc)ENGINE
※MAKE SURE OF THE CLEARANCE BETWEEN CHAIN AND CRANKCASE.

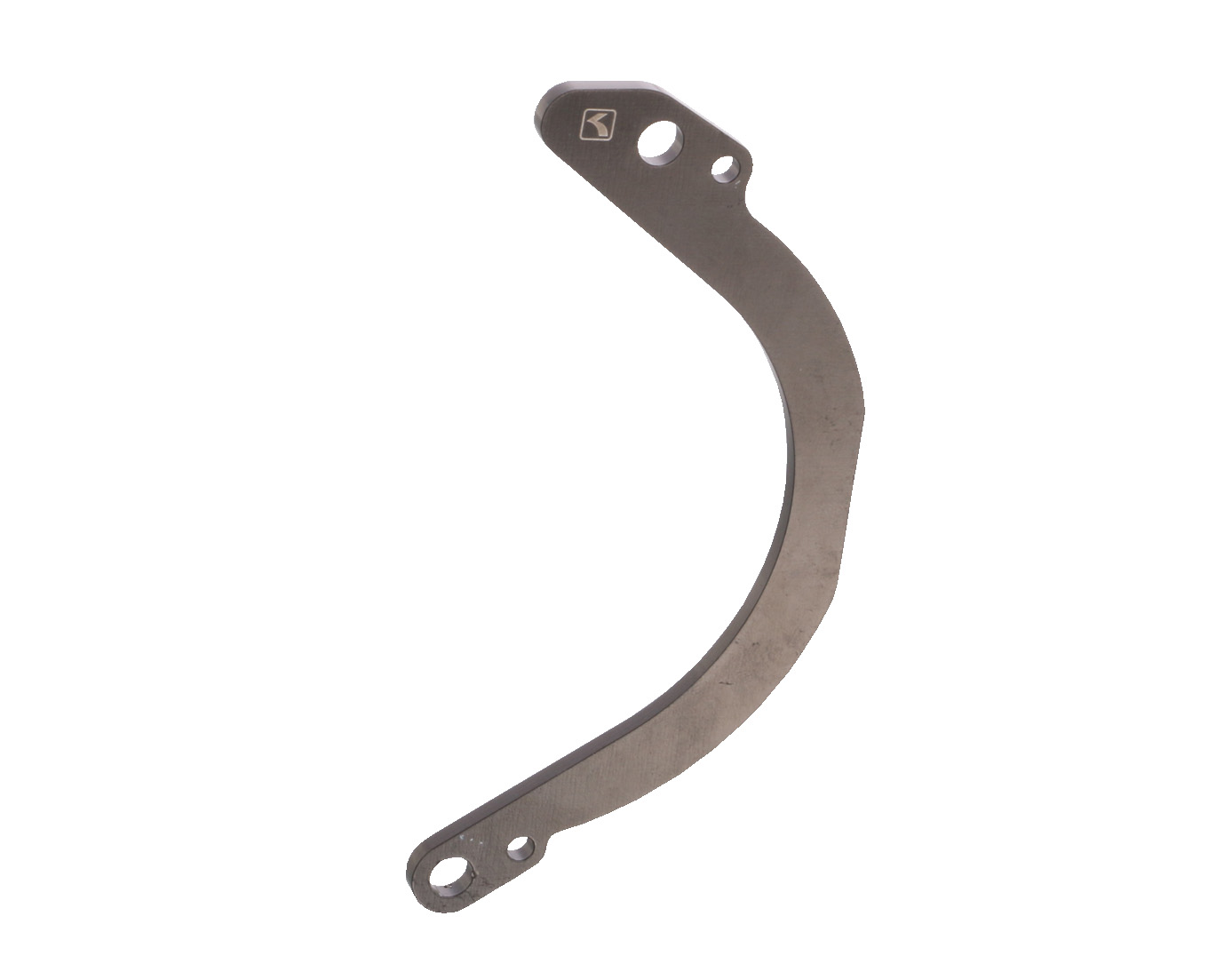

※WIDE CHAIN GUIDE PLATE IS REQUIRED WHNE INSTALLING 16T OR MORE ON MONKEY125 / GROM / MSX125. SPEEDOMETER DISPLAY ERRORS HAPPEN WHEN EXHANGING DIFFERENT TEETH.
※USING CHAIN GUIDE PLATE & 16T OR MORE IS NOT POSSIBLE FOR SUPER CUB50(AA04)

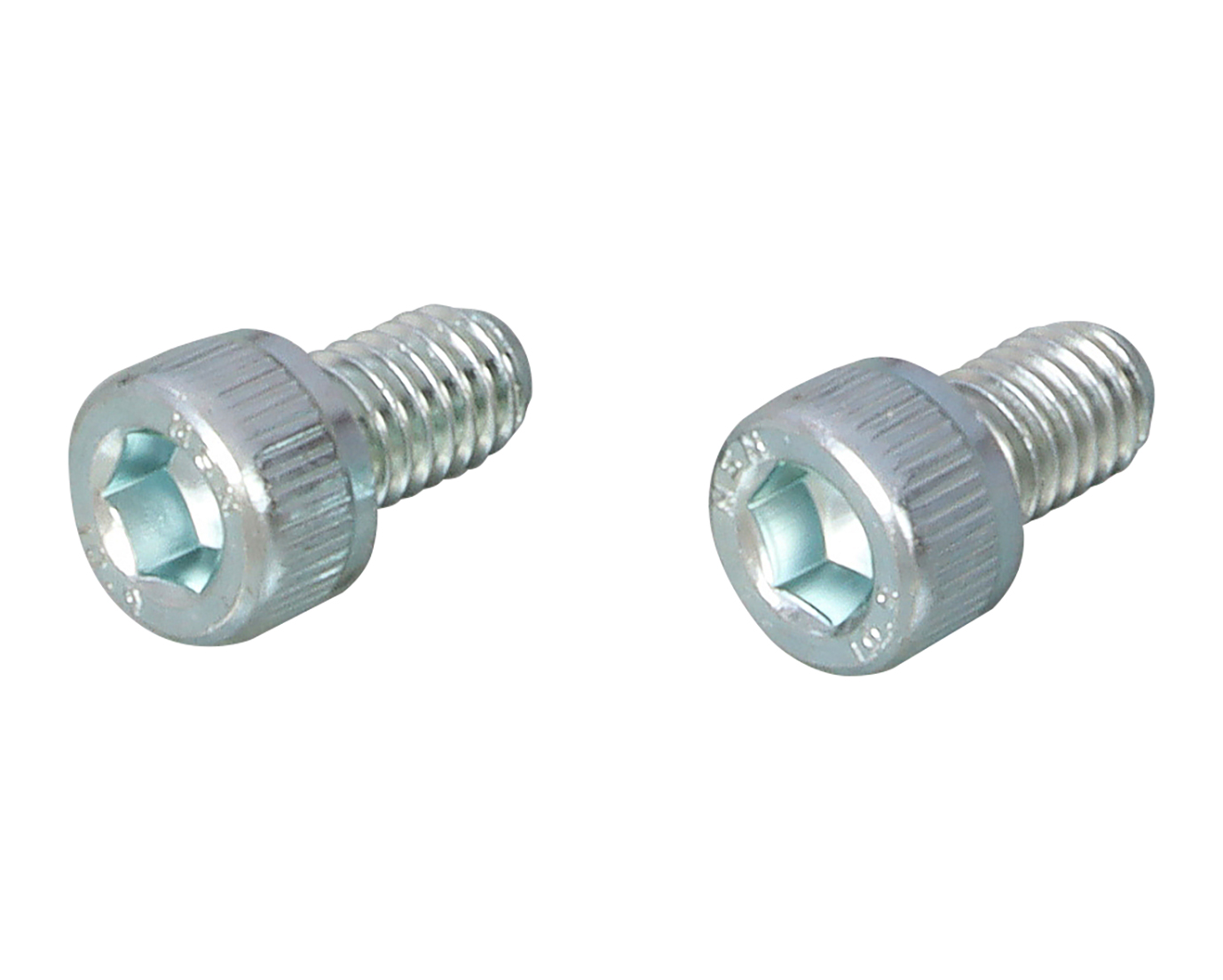

※M6X10 CAP BOLT IS REQUIRED WHEN INSTALLING 12/13T WHICH INTERFERESWITH CHAIN (SOLD SEPARATELY)
※TIGHTENS WITH CIR CLIP WHEN 415 12T.

>>View more

Comment

>>View more
